A compact stepper motor driven pump complete with self pulsing stepper driver capable of speed setting over a very wide range.

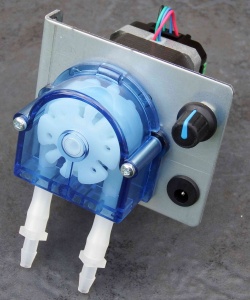

The pump is available with two driver options: SMA with a miniature speed control potentiometer mounted on the stepper driver intended for infrequent use such as calibrating flow or SMB with a much more robust bracket mounted potentiometer and control knob.

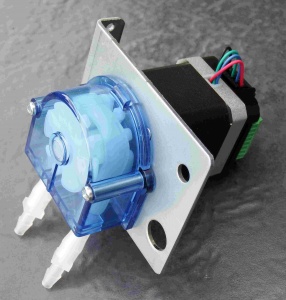

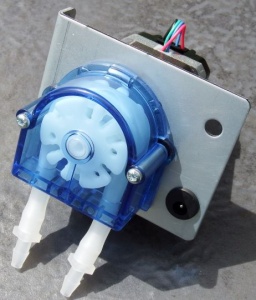

The (-PS) SMA versions come with bracket mounted DC socket and plug in switch mode power supply with UK, EU and US heads unless the power supply not required is selected in the drop down in which case neither the DC socket or power supply will be supplied.
The (-PS) SMB versions come with bracket mounted speed control, DC socket and plug in switch mode power supply with UK, EU and US heads unless the power supply not required is selected in the drop down in which case neither the speed control, DC socket or power supply will be supplied.
Various tube materials are available.
The pump head comes with 3 rollers as standard but can be supplied as 2,4 or 6 rollers. 4 or 6 rollers cannot be used on tube materials other than Silicone please contact sales office for information.
