100CPT Series Micro Peristaltic Pump

(£10.58 Inc. VAT)
Motor Cover & flying leads fitted (available for DC pumps only)
Part Number

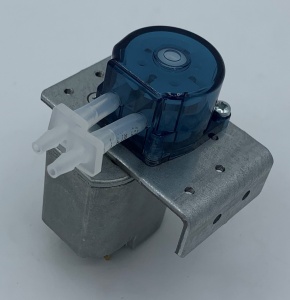

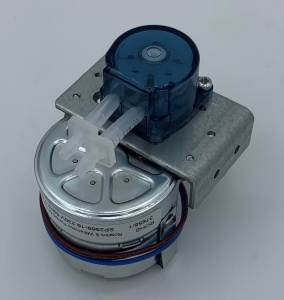

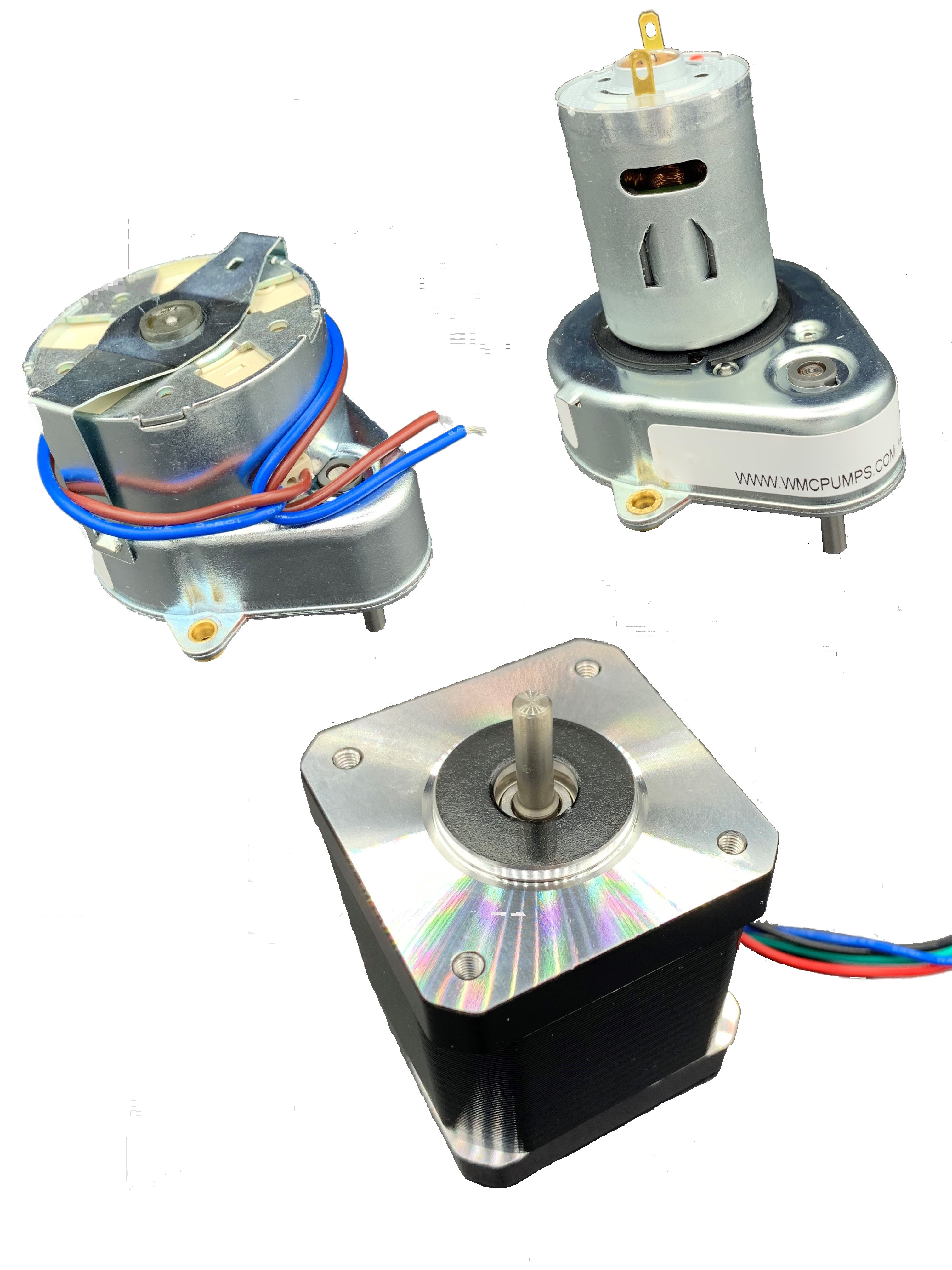

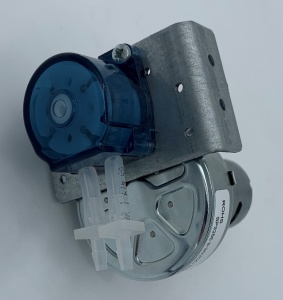

The 100 CPT micro range of peristaltic pumps were designed by the Williamson Manufacturing Company to offer the OEM a low cost compact and reliable means of dosing a wide range of liquids. As with all peristaltic pumps they have excellent suction performance, self-priming up to 5 metres from dry and capable of pumping up to 15 metres head pressure. Peristaltic pumps offer a good level of accuracy and repeatability and as only the tube contacts the pumped media, they are corrosion resistant, easy to clean and inexpensive to maintain. The 100 series pump heads have an SAN housing, 2 or 4 stainless steel rollers, and an acetal roller assembly to ensure durability and performance. Flow rates differ for the 2 and 4 roller assemblies and according to tube size, from 0.16 up to 85 ml/min. A  range of stock motors (including DC & AC synchronous) to fit the 100CPT series micro pump heads gives a good range of performance and is adaptable to many existing installations. Variable speed drive controllers can be supplied to meet customers requirements. In addition to motor/pump assemblies the 100CPT series pump is available as a pump head only, fitted with various tube materials.

For Pump Head only Select this option in Motor rpm / voltage drop down


Optional motor terminal cover & flying leads are available for DC motor driven pumps:  The 5,18,35 & 70 rpm pumps have a screwed cover and 230mm long leads, the 150,220 & 330 rpm pumps have a push fit cover and 200mm long leads.


100CPT Series Data & Instruction Sheets
